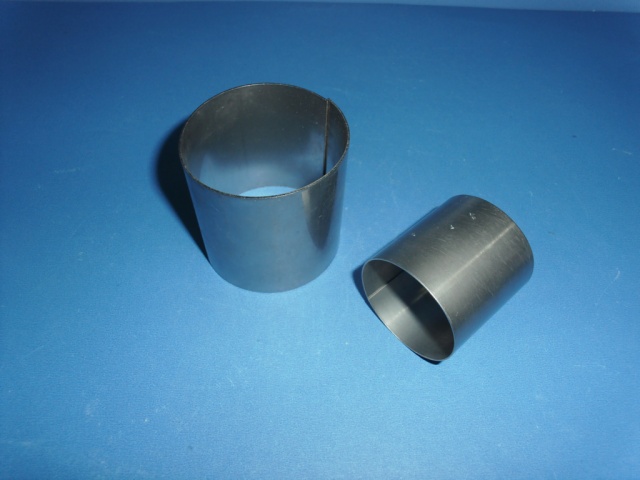

Metal raschig ring for tower packing, random tower pickings have been developed extensively. The R-ring is now used in many applications, but particularly in supporting catalyst beds. Metal raschig rings are available in a wide range of carbon and stainless steels, 304, 304L , 410,316, 316L etc.
Geometric Parameters
|
Size
(mm)
|
Bulk density
(kg/m3)
|
Number
per m3
|
Surface area
(m2/m3)
|
Free volume
(%)
|
|
15×15×0.3
|
379
|
230000
|
350
|
95
|
|
25×25×0.4
|
318
|
51000
|
216
|
96
|
|
25×25×0.5
|
400
|
51000
|
220
|
95
|
|
35×35×0.8
|
430
|
19000
|
150
|
93
|
|
50×50×0.5
|
203
|
6500
|
106
|
97.4
|
|
50×50×0.7
|
285
|
6500
|
108
|
96.4
|
|
50×50×0.8
|
325
|
7000
|
109
|
95
|
|
76×76×0.8
|
212
|
1830
|
69
|
97.3
|
|
80×80×1.2
|
300
|
1600
|
65
|
96
|
|
90×90×1.0
|
236
|
1160
|
62
|
97
|
鈥籓ther specifications are available upon request.
*Metal random tower packings are made of materials like carbon steel, stainless steel (304, 304L, 410, 316, 316L, etc) and Aluminum alloy, etc. The products have feature such as thin wall, heat resistant, high void ratio, high capacity, low resistance, high separation efficiency and so on. Them are especially suitable for rectification towers under vacuum to treat thermo sensitive, decomposable, polymerizable or cokable systems, so them are widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.*
