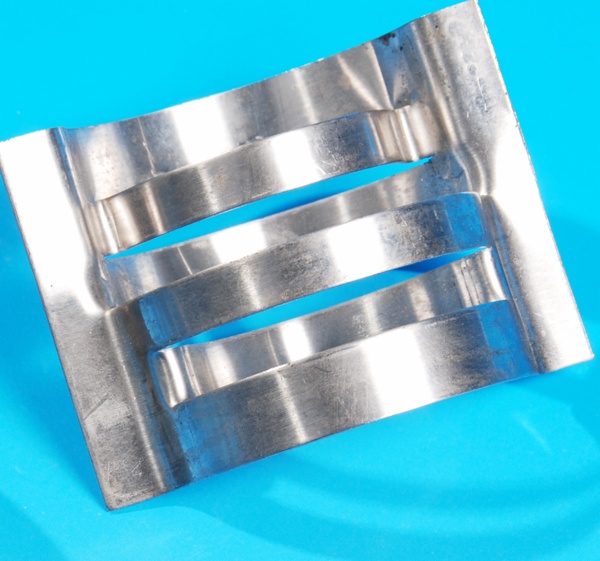

Metal Conjugated Ring

Item Code: Features:
  • Description

Metal Conjugated Ring random tower packing is of big liquid flow, low pressure drop and high efficiency. This packing takes the advantages of ring and saddle. It has proper flanging and diameter ratio. point contact isused between rings and tower wall.it has better fluid mehanics and mass transfer property. The packing used in packed tower of alkali-chloride industry, petroleum industry, coal gas industry, chemical industry and environment industry. We produce the conjugated rings of sizes 15mm, 25mm, 38mm, 50mm, 80mm.

Technical Data of Conjugated Rings

Specification

D*H*δ

(mm)

Specific Surface

(m2/m3)

Void Fraction

(%)

Packing Number

(Piece/m3)

Bulk Density

(Kg/m3)

15×15×0.3

360

94

240000

385

25×25×0.3

215

96

51000

231

38×38×0.4

135

96

14500

207

50×50×0.5

105

96

6300

200

80×80×0.8

80

96

1600

200





Remark:

The bulk density data is reference to material stainless steel (SS304) in the material thickness shown

Material thickness can be adjusted to clients' needs. Other sizes are available on request.





鈥籓ther specifications are available upon request.

*Metal random tower packings are made of materials like carbon steel, stainless steel (304, 304L, 410, 316, 316L, etc) and Aluminum alloy, etc. The products have feature such as thin wall, heat resistant, high void ratio, high capacity, low resistance, high separation efficiency and so on. Them are especially suitable for rectification towers under vacuum to treat thermo sensitive, decomposable, polymerizable or cokable systems, so them are widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.*
