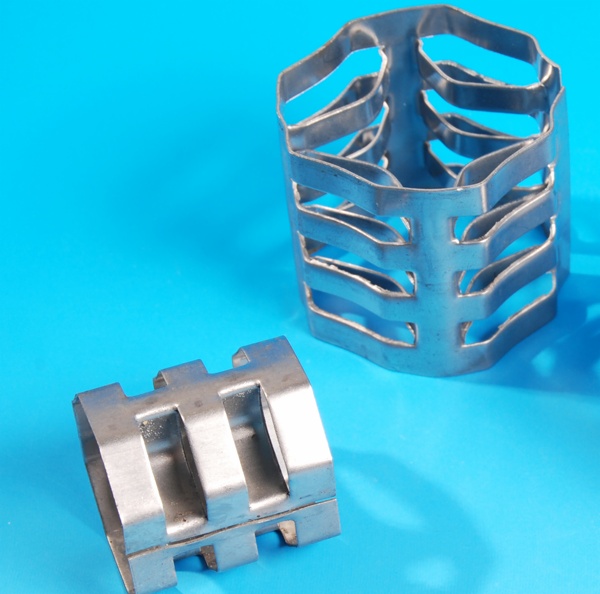

Metal Inner Arc Ring

Item Code: Features:
  • Description
During plant operation, Metal inner arc ring random tower packings create gas/liquid contact on easily wettable surfaces and promote the formation of droplets as the liquid cascades through the packed bed. This ensures good liquid mixing and consistent and uniform distribution. This open non-testing structure creates high efficiency and a very low pressure drop.
Details

  Technical data

D*H*T (mm)
Surface area (m²/m³)
Free volume (%)
Number per m³
Bulk density (Kg/m³)
25*25*0.6
250
93
59200
420
38*38*0.6
138
94.7
14500
350
50*50*0.8
121
95
7000
300
76*76*1.0
75
95
1950
280


The above data is reference to material stainless steel (AISI304) in the material thickness shown.

鈥籓ther specifications are available upon request.

*Metal random tower packings are made of materials like carbon steel, stainless steel (304, 304L, 410, 316, 316L, etc) and Aluminum alloy, etc. The products have feature such as thin wall, heat resistant, high void ratio, high capacity, low resistance, high separation efficiency and so on. Them are especially suitable for rectification towers under vacuum to treat thermo sensitive, decomposable, polymerizable or cokable systems, so them are widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.*
