metal intalox saddle

Item Code: Features:
  • Description

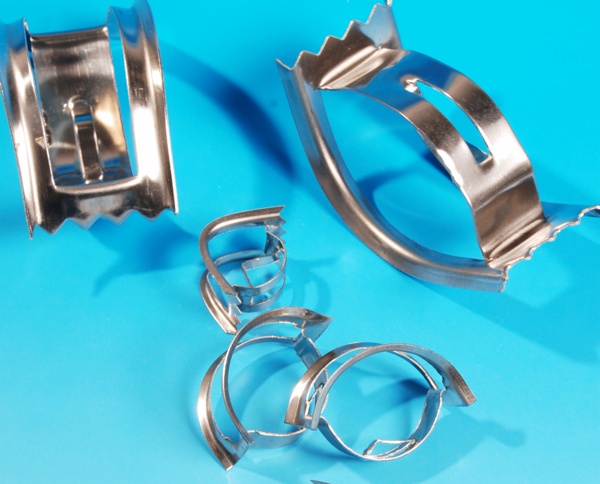

Metal intalox saddle (INTALOX Metal Tower Packing / Medal-Pak / IMTP) random tower packings' advantage: A versatile packing used in distillation, absorption and other operations. Used in both deep vacuum and high pressure towers.

Details:

Technical data

D*H*T (mm) Surface area (m²/m³) Free volume (%) Number per m³ Bulk density (Kg/m³)
25*20*0.5 185 96 119047 153
38*24*0.5 140.4 96.8 31654 249.6
50*28*0.8 90.1 97 11160 239.7
76*48*1 57.6 97 3320 244.7
The above data is reference to material stainless steel (AISI304) in the material thickness shown. Other material available: carbon steel, stainless steel including 304, 304L, 410,316, 316L.

鈥籓ther specifications are available upon request.

*Metal random tower packings are made of materials like carbon steel, stainless steel (304, 304L, 410, 316, 316L, etc) and Aluminum alloy, etc. The products have feature such as thin wall, heat resistant, high void ratio, high capacity, low resistance, high separation efficiency and so on. Them are especially suitable for rectification towers under vacuum to treat thermo sensitive, decomposable, polymerizable or cokable systems, so them are widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.*
